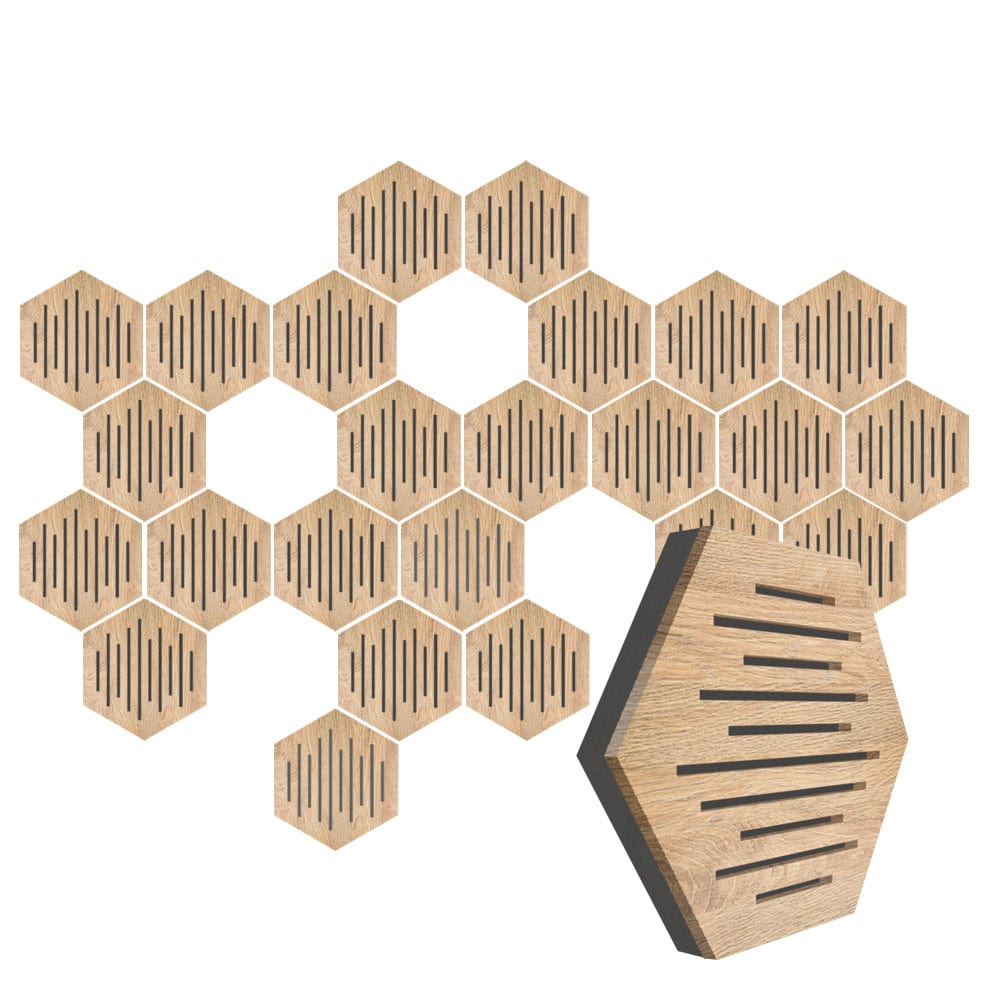

Organic Curved Wave Hexagon Diffuser + Absorber (KK1416)

Name: Organic Curved Wave Hexagon Diffuser + Absorber (KK1416)
Brand: Arrowzoom
SKU: KK1416-06-WD-30-02
Price: 115.0 AUD
Availability: InStock

$115.00 AUD

$115.00 AUD ~~$0.00 AUD~~

SAVE Sold out

✅ Absorbs AND diffuses — most panels do only one

✅ Published NRC 0.64 · scatters 200 Hz – 5 kHz

✅ Hexagons tiles — seamless honeycomb wall

✅ M1 fire-rated — safe for restaurants, offices, public spaces

Pieces - 6 Pcs - 30 x 26 x 1 cm /11.8 x 10.2 x 0.3 in

Product variants

Quantity

add_shopping_cart

Ordered

local_shipping

Shipped

redeem

- - -

At Your Doorstep

Arrowzoom™ Diffuse PRO Waves Hexagon Felt Wooden Panel - KK1416

$115.00

$115.00 ~~$0.00~~

SAVE Sold out

The organic-curve hex in the Diffuse PRO line — softens hard rooms with curved wave slats while absorbing AND diffusing in one piece. NRC 0.64, M1 fire-rated, 10 wood finishes, hex-tileable into honeycomb feature walls.

★ 4.6 from 33 verified reviews — the most-reviewed panel in the Diffuse PRO line.

Why Waves Hexagon is different

Curved wave slats — softer, more organic look than straight-line square panels. The design buyer's choice in the Diffuse PRO line.
Absorber + diffuser in one panel — most acoustic panels do only one job. This one does both.
Hex tileable — interlock into honeycomb feature walls in any size from 6 to 24+ pieces.
Published NRC 0.64 — absorbs ~64% of mid/high-frequency sound energy on contact.
M1 fire-rated (Euroclass E) — meets commercial install requirements in offices, restaurants, hospitality.
10 wood finishes — oak veneer and MDF tones to match warm, design-led interiors.

How it works — two acoustic jobs, one hex

ABSORPTION

Foam core kills echo

The M1 fire-class foam behind the wood face captures mid- and high-frequency energy, cutting reverb and room muddiness on contact.

DIFFUSION

Curved wave slats scatter reflections

The organic 3D wave geometry on the oakwood face breaks incoming sound into smaller, scattered reflections from 200 Hz to 5 kHz — so the room stays lively, not dead.

Standard foam panels only absorb. Pure diffusers only scatter. Waves Hexagon does both at once — and the curved wave geometry scatters more naturally than straight-line slats, which is why design-driven studios, restaurants, and listening rooms pick this SKU.

Specifications

SKU	KK1416
Shape	Hexagon — tileable into honeycomb
Panel size (hex)	11.8 × 10.2 × 0.4 in (30 × 26 × 1 cm)
Pack sizes	6 / 12 / 24 pieces
Coverage — 6 pack	~4.4 sq ft (~0.41 m²)
Coverage — 12 pack	~8.7 sq ft (~0.81 m²)
Coverage — 24 pack	~17.4 sq ft (~1.62 m²)
Face material	Laminated MDF with oakwood veneer — curved wave slats (10 finishes)
Core material	Acoustic foam — M1 fire class
Fire class	M1 / Euroclass E
NRC (overall)	0.64
Scattering range	200 Hz – 5000 Hz
Color options	10 wood finishes (oak veneer + MDF tones)

Acoustic performance — what the numbers mean

Waves Hexagon is a combination absorber + diffuser. It reduces echo inside a room and breaks up flutter reflections. It does not block sound transmission through a wall.

Metric	Value	What it means
NRC	0.64	Absorbs ~64% of mid/high-frequency sound energy on contact
Scattering range	200 Hz – 5 kHz	Curved wave slats break up flutter echo across the full speech and music range
Fire class	M1 / Euroclass E	Meets commercial-install fire requirements in most EU and Asian markets
STC	Not rated	STC measures wall blocking. For noise transmission between rooms, use mass — not absorption.

NRC 0.64 is the published overall figure for the foam-and-veneer assembly. Lab-measured.

What's in the box

6, 12, or 24 Waves Hexagon panels (selected pack size)
11.8 × 10.2 × 0.4 in / 30 × 26 × 1 cm each
Selected oakwood / MDF finish
Install guide (mounting hardware sold separately)

Install in 4 steps

Plan the honeycomb

Lay hexes on the floor first. Photograph the layout before mounting. Tight honeycomb, gapped honeycomb, or feature-wall cluster — your call.

Choose your mount

Construction adhesive for permanent installs. Heavy-duty 3M Command strips or Z-clips for rental-friendly mounting. Hexes are lightweight (0.4 in / 1 cm panels).

Mount the panels

Press firmly for 30 seconds. Start with one anchor hex, then tile outward. Use a level to keep the honeycomb axis true.

Treat first-reflection points

For studios and listening rooms, cluster hexes at the first-reflection points on side walls and behind the listening position.

Made for

Design-led studios & podcast roomsCurved wave slats look on camera. Acoustic tame without the foam-wall vibe.

Restaurants, cafés & hospitalityM1 fire class meets commercial code. Honeycomb feature walls fit warm interior design.

Modern offices & conference roomsCuts echo on video calls; reads as design feature, not a foam patch.

Home theaters & listening roomsCleaner dialogue, better stereo image, no slap-back — and a wall worth showing off.

Why Waves Hexagon beats square and pure-foam panels

	Waves Hexagon (KK1416)	Square wood diffuser	Standard foam panel
Absorbs echo (NRC)	0.64	0.60–0.64	0.25–0.40 typical
Diffuses reflections (200 Hz – 5 kHz)	Yes — curved wave slats	Yes — straight slats	No
Organic / softer look	Curved wave geometry	Hard lines	Flat foam
Tileable into feature walls	Hex honeycomb	Grid only	Grid only
Commercial fire rating	M1 / Euroclass E	M1 / Euroclass E	Varies / often not rated

100-Day Acoustic Guarantee

Mount the hexes. Live with them for up to 100 days. If your room isn't measurably better — or if the look isn't what you wanted — send them back for a full refund. We've shipped acoustic products worldwide for over a decade. We stand behind every order.

Frequently asked questions

What makes the wave hex different from the square Diffuse PRO?

Same foam core, same NRC 0.64, same M1 fire class. The difference is geometry: curved wave slats on a hexagonal panel. Softer, more organic look — better for warm, design-led interiors. The hex shape also tiles into honeycomb feature walls. Pick this SKU when the design matters as much as the acoustics.

Will this block noise from my neighbor or the street?

No. Waves Hexagon is an absorber + diffuser. It reduces echo and breaks up reflections inside a room. Blocking noise through a wall requires mass — extra drywall, mass-loaded vinyl, or a sealed door. Anyone selling a thin foam panel as "soundproofing" is misleading you.

What's the real difference between absorption and diffusion?

Absorption removes sound energy (kills echo). Diffusion scatters it (keeps the room feeling alive without flutter). Pure absorption rooms feel dead. Pure diffusion rooms still have reverb. Waves Hexagon does both — which is why it works in design-driven studios, restaurants, and listening rooms.

How many hexes do I need?

For most home studios and offices, cover 20–30% of reflective wall area. Rough guide: small booth or office (8 × 10 ft / 2.4 × 3 m) → 6–12 hexes. Mid-size studio or restaurant section → 12–24 hexes. Auditorium or large room → 24+ hexes (multiple packs).

Can I tile the hexes into a honeycomb wall?

Yes — that's the design intent. Hexes interlock edge-to-edge into a tight honeycomb, or you can space them out for a gapped cluster look. Lay them on the floor first, photograph the layout, then mount one anchor hex and tile outward.

Is the wood face real oak?

The face is laminated MDF with oakwood veneer — same construction used in commercial acoustic panels and high-end furniture. Solid oak at this slat geometry would crack and cost 5× more. Veneer gives the same look at a usable weight and price.

Can I install this myself? What about rentals?

Yes. Hexes are lightweight (0.4 in / 1 cm). For permanent installs, construction adhesive or screws into wall anchors. For rentals, heavy-duty 3M Command strips, or Z-clip brackets that lift on and off. Mounting hardware is sold separately so you can match the wall.

Is this safe for commercial spaces — restaurants, offices, schools?

Yes. The panel is M1 fire-rated (Euroclass E), which meets commercial fire-safety code in most EU and Asian markets. Always confirm specific local requirements with your fire marshal or architect before installing in public assembly spaces.

How long does shipping take?

Handling 1–2 business days, then standard shipping 7–14 days to the US and most countries (free worldwide on orders $99+). Express shipping is available at checkout — 7 days or less to most destinations.

What's your return policy?

100-day guarantee. If the hexes don't deliver the acoustic or visual result you expected, contact support within 100 days for a full refund. Bulk B2B / contractor orders (100+ panels) follow a separate policy — contact us before placing the order.

How do I clean the curved wave face?

Dry microfiber cloth or soft brush for dust between the wave slats. Slightly damp cloth (water only, well-wrung) for the rare smudge. No solvents, no furniture polish, no spraying — the veneer and the foam core both prefer dry treatment.
