- Brand New Tile Acoustic Foam
- Made by Imported High Quality Foam
- Sound-Absorbing Foam

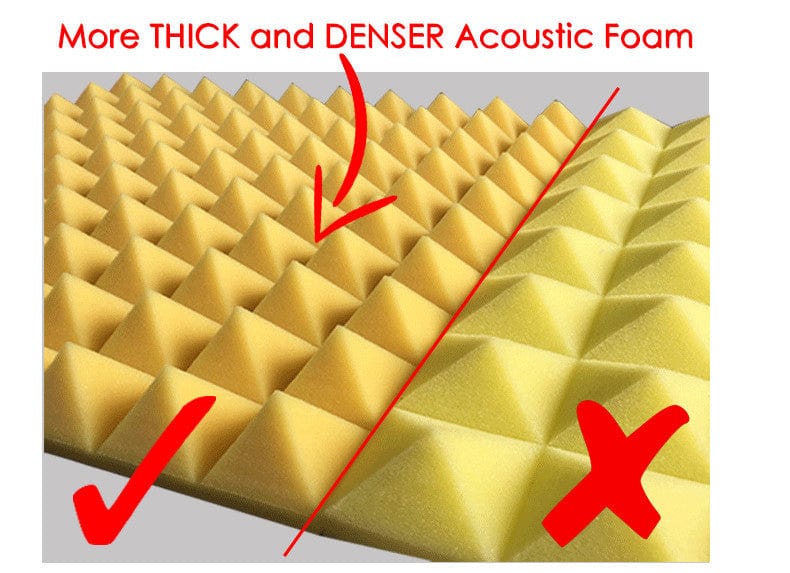

- High density acoustic foam cell structure for maximum noise absorption
- Helps to flutter echoes and reduce excess reflections and reverberation
- Improves vocal clarity and acoustics of your room
- Highly fire retardant
- Ideal for use in recording studios, home theaters and karaoke room
- 2 Colors Available
- Size & Dimension: 180 X 90 X 7.5 cm (70.8 X 35.4 X 2.9 in)
- Each Order Contains: 12 pcs. Set Wall Insulation + 4 pcs. FREE Tape + FREE Acoustic Foam Guide
- NOTE: We may split your order into multiple shipments for postage. And due to shipping requirements, we compressed (vacuum sealed) the acoustic foam for easy shipping. Please kindly give up until 24 to 48 hours for the foam to restore its normal size.
broadcast thru the air, causing issues with noise entering and exiting your house studio.
Why hire a Professional if you can construct a soundproof room in your house yourself!.
Foam! Buy these New Acoustic Foam now and have a perfect room to party!
- Density (Core) 29 kg/m3 (1.8 lb/ft3) ASTM D1622
- Compressive Strength 186 kPa (27.0 psi) ASTM D1621
- Tensile Strength 241 kPa (35.0 psi) ASTM D1623
- Open Cell Content 8.0% ASTM D2856
- Water Absorption 1.2 % by volume ASTM D2842
- Water Vapour Permeance
- 50mm sample 42 ng/Pa·s·m2 (0.70 Perms) ASTM E96
- Dimensional Stability
- Volume Change (%) after 28 days
- -0.0 @ -20°C (-29°F)
- 1.5 @ 70°C (158°F) @ 97± 3% RH
- 0.4 @ 80°C (176°F)
- ASTM D2126
- Flame Spread Classification** Flame Spread <500
- Smoke Developed <500
- Including S127
- Time to Occupancy*** 24 Hours CAN/ULC-S774
- Initial Thermal Resistance (50 mm) RSI: 2.45 m2·K/W (R: 13.9 ft2·hr·°F / BTU) ASTM C518
- Hot-Surface Performance Passed when exposed to 93°C for 96 hours ASTM C 411
- Fungi Resistance After 28 day incubation - no fungal growth exhibited ASTM C1338
General Installation Tips
Soft Sound Pyramid Studio Foam is typically surface mounted on the walls within a studio and will improve the overall acoustic performance of the space. It is important that you evenly distribute the panels throughout the room and not cluster in one area. The Pyramid Studio Foam is a modular pattern - the seams don’t always line up perfectly when butting the pieces end to end, this is explained further below.
utility knife, straight edge, tape measure, caulking gun, pencil or chalk line
- Mark the Pyramid Studio Foam to the appropriate size using the tape measure and marker.
- Cut along the line using the utility knife. With the thicker foams, it may take several passes to completely cut the Anechoic Studio Foam.
- An alternate cutting method is to compress the foam along the line marked in Step 1. With the material compressed, it will reduce the number of passes that must be made to completely cut the foam.
- Lay the Pyramid Studio Foam out for your specific application - keep in mind that you want the foam evenly distributed throughout the room. Pyramid Foam is a modular design and the seams don’t always line up with the pattern.
- Measure any areas that need to be field cut on the foam and make the appropriate cuts
(examples would be around beams, doorways, or if a short piece is needed).
- After all the pieces have been field cut, put the material back in the appropriate position on the
wall or ceiling and lightly mark the bottom and side of where each piece will be lightly with a
pencil to ensure straight application.
- Glue each piece individually with Acoustic Construction Adhesive. Create a perimeter around the outside of the material staying 1 ½ “ away from the edge. Create an X pattern across the center of the material.
- Line the material up with the lines you marked in Step 3 and press firmly against the material
compressing the foam. Repeat step for remaining pieces of foam
1. Is this product sold with whatever I need to mount/stick it on my walls? If not, what product should I buy to do that?
• Bundle order comes with a free 4 pcs transparent tape. You can also order 24 pcs tape Click Here ►
2. Are these the right panels for soundproofing a subwoofer? If not, what should i get instead?
• It depends on the room size these are sufficient but you should drop a few more dollars and get something a little better quality.
3. Can i apply this on my door (inside my room) to prevent noisy neighbor or the noise outside?
• Yes, you can. But it wouldn’t keep 100% of the sound out, however. These are really designed to insulate a room and dampen sound before it hits a wall and reflects back. They will keep some sound out, but not too much. If you're going to put it on a door just made sure you over lap the gaps between the door and the wall on all sides. Like, put the tile about an inch past the edge of the door.
4. Would these be good for sound proofing a bedroom?
• No, that's really not what these are for. They provide echo damping, not sound proofing. Sure, if you coated a door with the stuff on both sides it might lessen the sound a bit, but it's really not what they're meant to do. These panels are only designed to reduce room noise inside, not noises from outside.
5. For the Tile Panel, is it small squares or is it a huge board?
• It is a huge square with the size of 50cm X 50cm (19.6 in X 19.6 in)
6. Would this work for soundproofing an entire room for a recording studio?
• This product will not 100% soundproof a room. But it will help with sound-isolation of the room.
7. Can I spray paint them to make them a little more attractive?
• You can, but we wouldn't advise this. Not only they are extremely porous--because clearly, its foam, it would change the condition to do what they were originally intended to do (to collect sound). We suggest you buy different colors of panels, we offer different colors for these kind of situations.
8. Can this product be used outdoors?
• No, if it’s uncovered open area, it wont last the rain and sun. If it’s on a covered area the dust or dirt may affect the quality of the foam and may affect it’s ability to collect or isolate sound.
9. What is it made of?
• Our Acoustic foam is a lightweight open celled foam material made from Acoustic foam polyester, and also extruded melamine foam.
10. How do I arrange these around my room with studio monitors?
• There are a couple of ways of doing it, one way is to arrange all of them together on your wall opposite of your monitors another way is to spread them out evenly around the room. For more ideas on you can check on you tube.
11. Are these flame retarded or fire proof?
• Yes, they are
12. It really echoes when I am talking on the phone at normal volumes. Will this dampen my voice?
• Yes it will substantially. But it depends on the size of the room on how much it will absorb the sound.
13. Will this soundproof the intense bass of my subwoofer?
• Not really, but you can buy our Bass Trap Foam to lessen the intense bass.
14. Can these be cut/altered to fit into certain spaces?
•Yes. Quite easily.
15. Did the foams undergo an Sound Absorption Test?
• Yes, after manufacturing, the foams will undergo an Sound Absorption Test.
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
I bought several packs of these in an attempt to deaden the loud droning of the HVAC system in my condo. Our unit has the HVAC system in a closet that's just off of the living room. It's been a constant annoyance for years. I lined the walls of the closet with these using some 3m mounting tape. I'm pleasantly surprised how easy and effective it was! We can definitely still hear it, but now we hear the TV over the AC, not the other way around. These really cut down on any sort of echo or traveling noise.
How Many Acoustic Foams & Soundproof Panels Do You Need?
