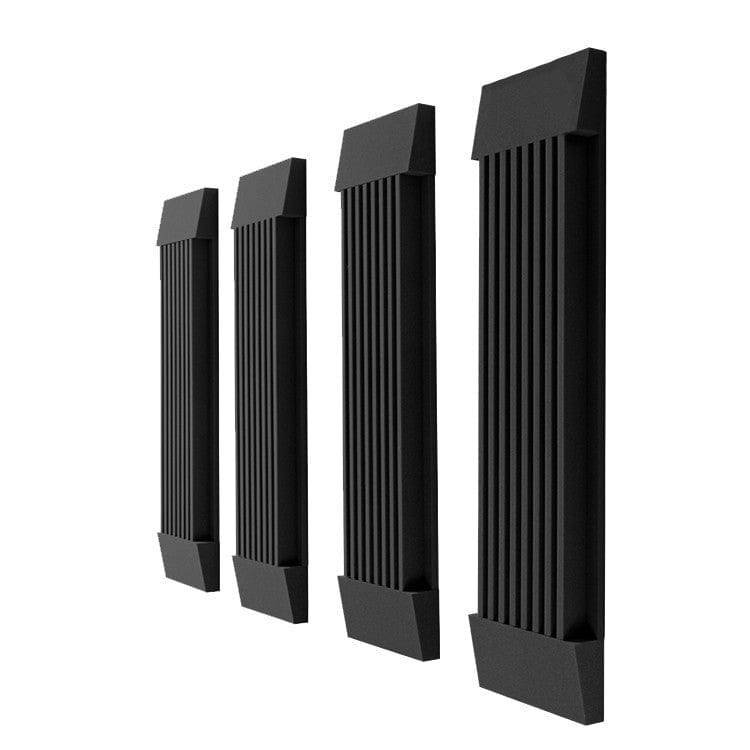

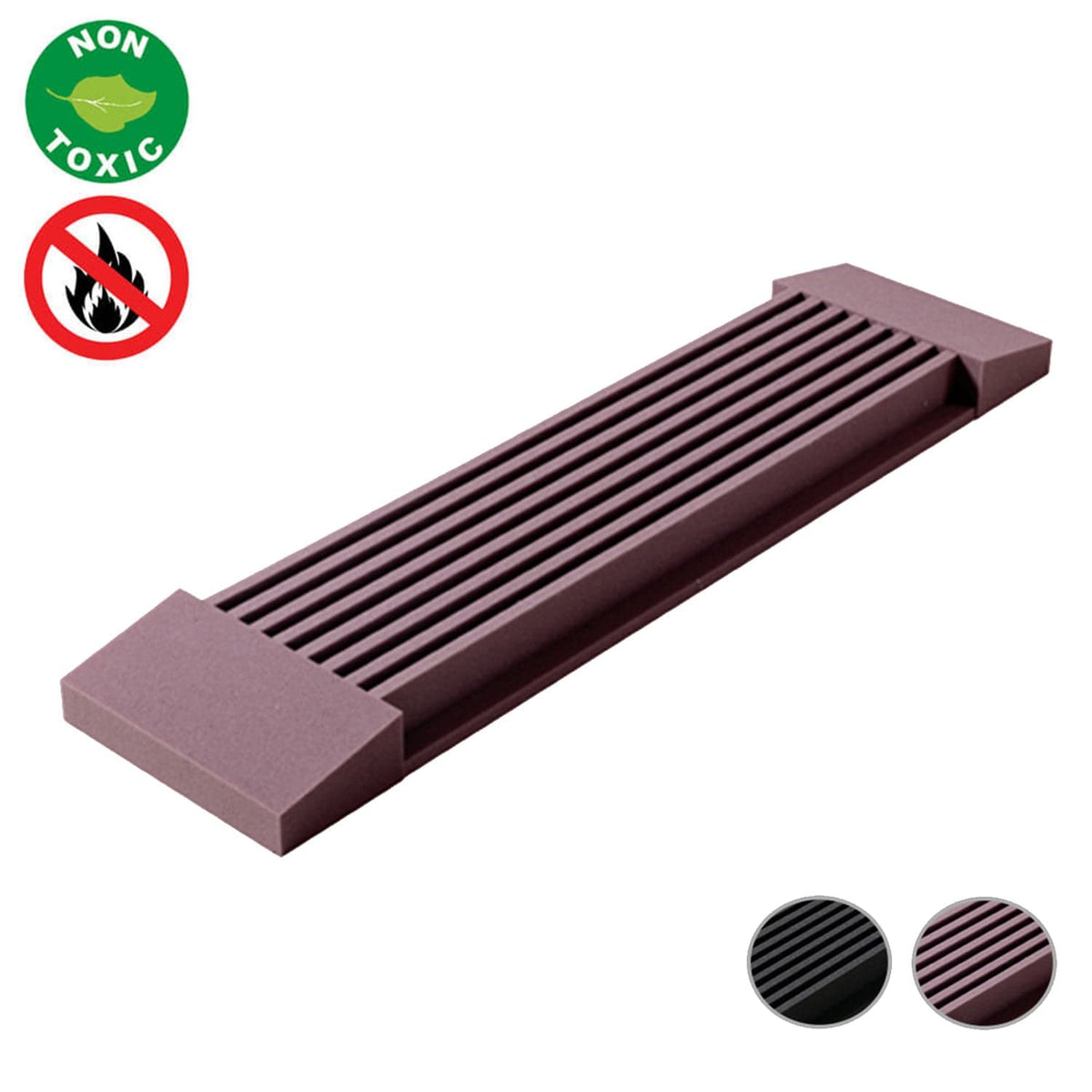

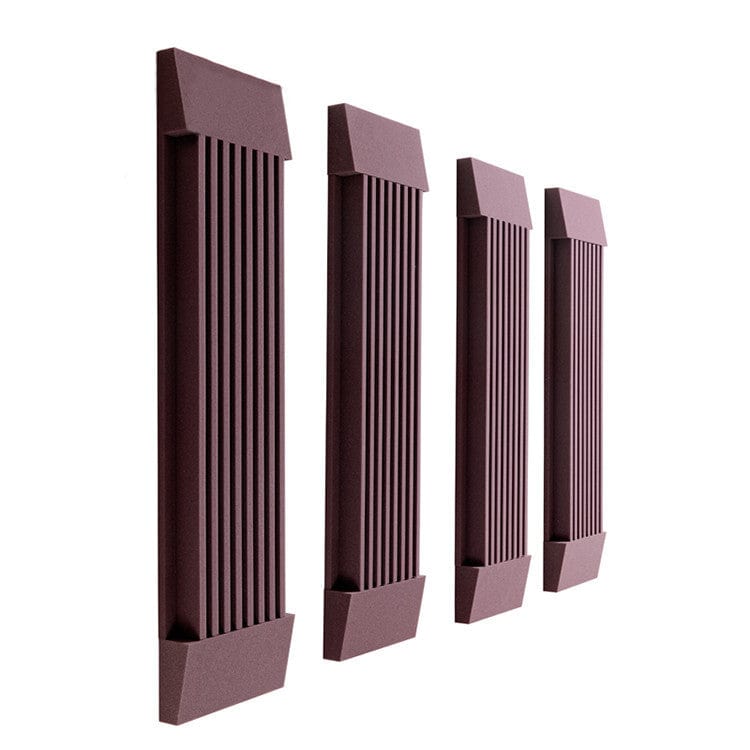

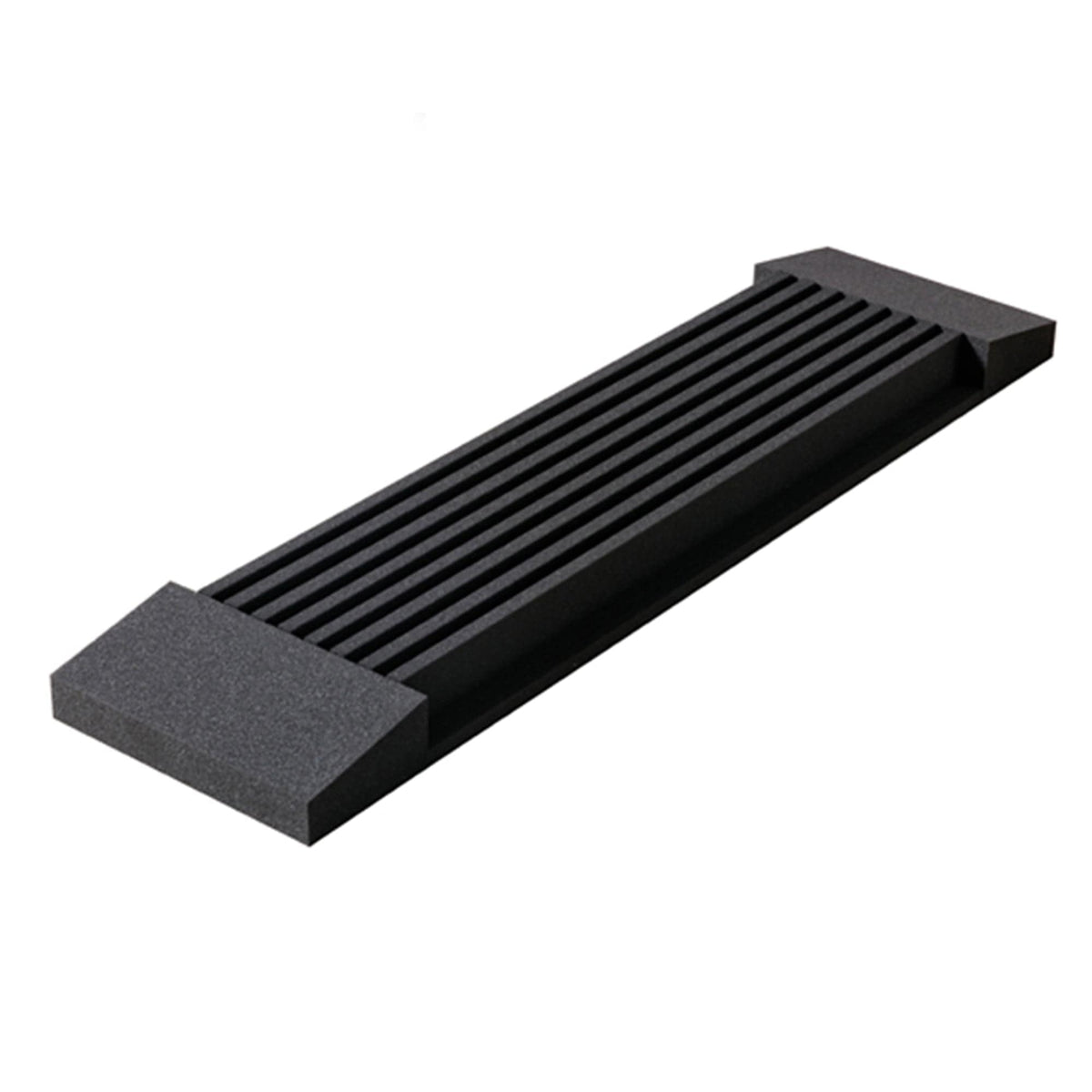

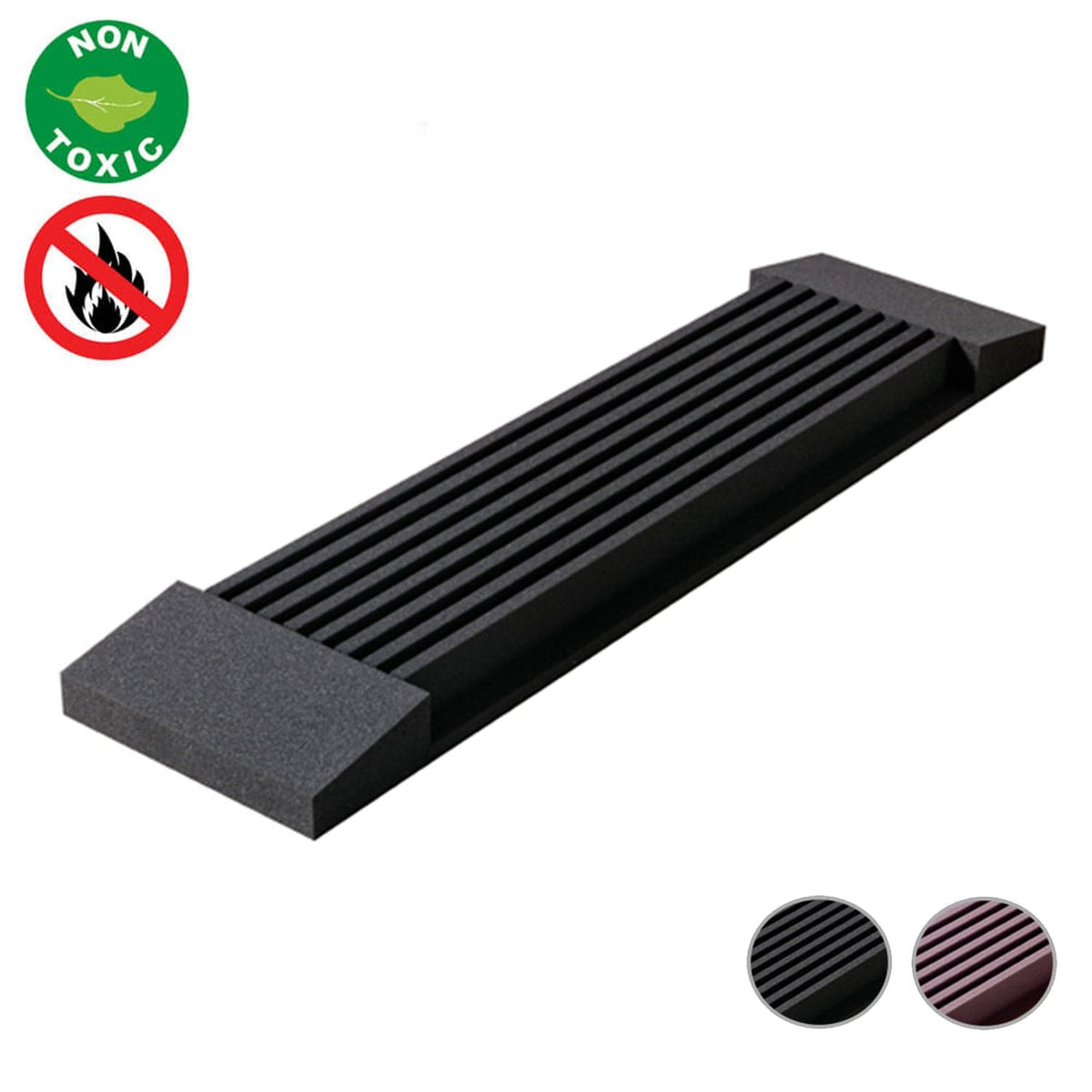

Arrowzoom Acoustic Wall Set Panel Product Description & Complete Guide
Arrowzoom Acoustic Wall Set Panel is a melamine-free acoustic foam with a Class A fire rating. Acoustic Sidewall Panel is a great investment in your home with benefits including durability & affordability.
How To Soundproof A Wall?
- Acoustic wall set panel breaks the direction of the sound waves that pass through a room and bounce off walls or ceilings.
- Trap unwanted sounds resulting in a cleaner sound free of echoes, background noises, and reverb.
Features & Highlights of Acoustic Wall Set Panel:
✅ Improve Acoustic Quality
By controlling the sound reflections using absorption panels, you can concentrate on the sound that you would like to hear. Speech intelligibility is particularly critical for effective communication.
✅ Amazing Material
The high quality acoustic panel are designed by audio engineers that allow anyone who like to improve the sound quality or solve sound issues to save time. Best sound deadening to filter approximately most of the outside noise from entering the room.
✅ High density
Acoustic cell structure is designed to maximize noise absorption.
All our acoustic panels are non-toxic and environment friendly
✅ Fire-Retardant Foam
Acoustic panels are fire-retardant. It stops fire from spreading and reduces its intensity.
✅ Easy to install
Scissors, velcro, staples, tacks, nails, glue
✅ Colors and Styles
Multi-colors and patterns are provided for you to choose from. You can make your own combinations to soundproof and decorate your room at the same time.
Before & After Installed Acoustic Wall Set Panel
Arrowzoom Soundproof Foam Sound Test
In this video, it shows the acoustic test comparison after installed acoustic pyramid across room types: Music Studio, Home Theater, Meeting Room, Indoor Stadium, and Sound Insulation & Vibration
Technical Data Sheet
STC (Sound Transmission Class), is a numerical rating of how effective a material is at blocking the transmission of sound through itself. This rating generally applies to hard materials like rubberized sound barriers, concrete, brick and drywall but also applies to a much lesser degree to softer materials like mineral fiber (although it isn’t tested by itself; it’s tested as part of a wall system to verify its effectiveness).
How To Install Acoustic Panel Step by Step
Follow the guidelines below to install acoustic panels to your walls step by step.
Step 1: Restore Vacuumed Acoustical Treatment Foam
Follow the instruction in this video to extract the acoustic foam>
Step 2: Locate the Acoustic Foam For Outline
Lay the Studio Foam out for your specific application. Keep in mind that you want the foam evenly distributed throughout the room.
Step 3: Mark & Resize the Acoustic Foam To Best Fit
Measure the designated areas that need to be field cut on the foam and make the appropriate cuts (examples would be around beams, doorways, or if a short piece is needed). After all the pieces have been field cut, put the material back in the appropriate position on the wall or ceiling and lightly mark the bottom and side of where each piece will be lightly with a pencil to ensure straight application.
Step 4: Apply Arrowzoom Tape or Glue the Acoustic Foam with Adhesive Spray
There are two ways to put the acoustic foams on the designated wall.
Method 1: Use Arrowzoom Sticky Double Sided Tape. Each foam should use 4 tapes. One for each corner. Once you peel off the sticker, the Acoustic foam should easily stick to the surface of your choice.
Method 2: Glue each piece individually with PL Polyurethane Construction Adhesive. Create a perimeter around the outside of the material staying 1 1/2" away from the edge. Create an X pattern across the center of the material.
(Note: Due to Shipping Reason, we do not sell Glue)
Step 5: Hang the Acoustic Foam With The Marked Line
Line up the materials on marked lines from Step 3 and press firmly against the material compressing the foam. Repeat step for remaining pieces of foam.
Are There Any New Arrivals Of Arrowzoom?
You can keep updated with our new products or collections by visiting our new arrivals page.

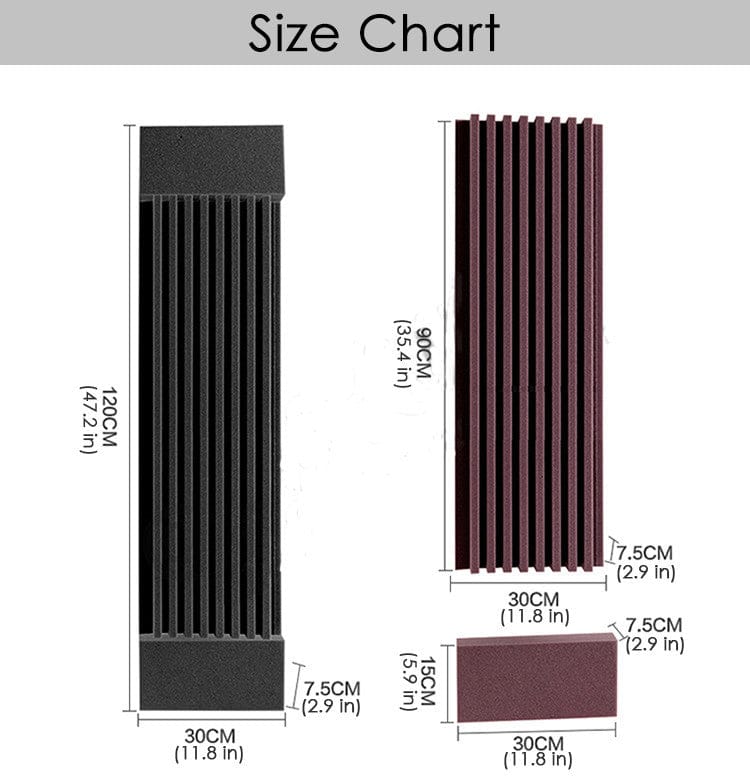

Size & Dimension:
- 120 X 30 X 7.5 cm (47.2 X 11.8 X 2.9 in)
Actual color may slightly differ depends on monitor settings.
We may split your order into multiple shipments for postage. And due to shipping requirements, we compressed (vacuum sealed) the acoustic foam for easy shipping.
Please kindly give up until 24 to 48 hours for the foam to restore its normal size.
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Customer ReviewsWrite a review
It does a decent job of absorbing standing waves. It is great for a home studio on a budget.
How Many Acoustic Foams & Soundproof Panels Do You Need?
