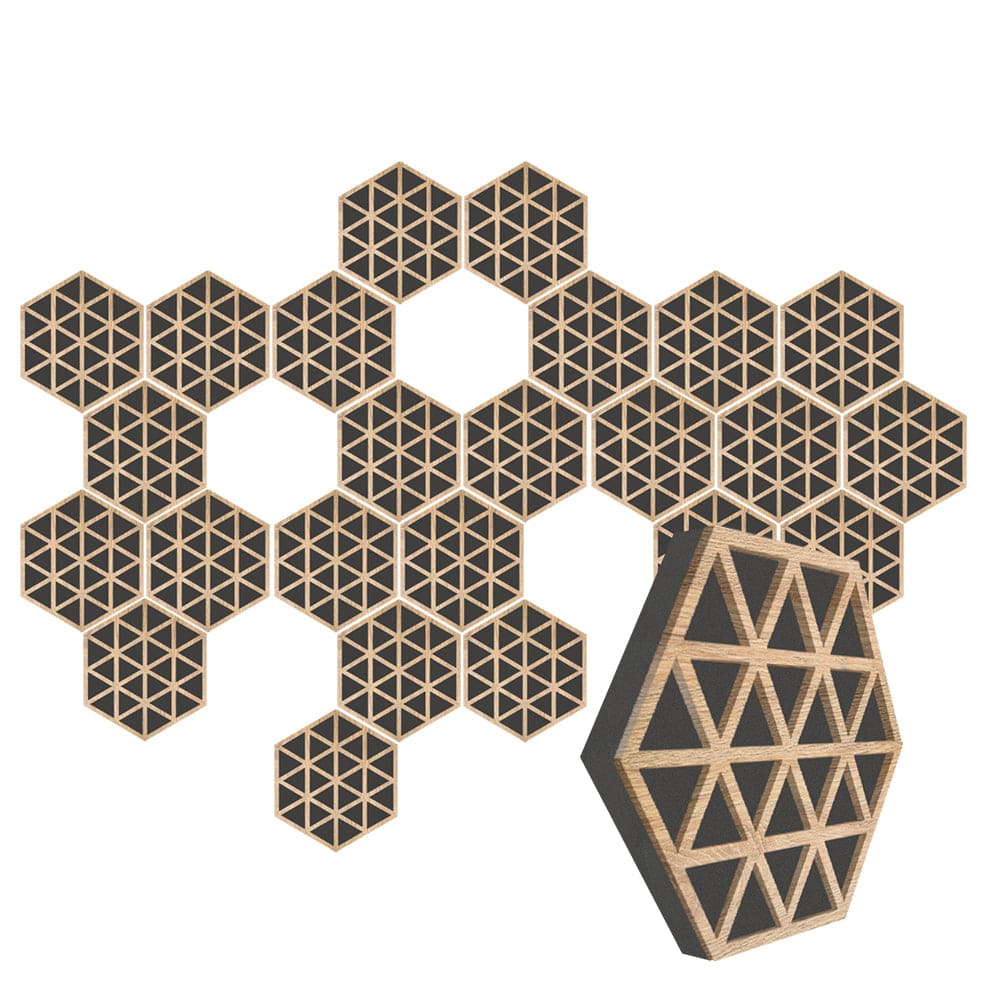

Isometric Triangle Hexagon Diffuser + Absorber (KK1417)

Isometric Triangle Hexagon Diffuser + Absorber (KK1417)

$ 79.99 USD
$ 79.99 USD $ 0.00 USD
SAVE Sold out

✅ Absorbs AND diffuses — most panels do only one

✅ Published NRC 0.64 · scatters 200 Hz – 5 kHz

✅ Hexagons tiles — seamless honeycomb wall

✅ M1 fire-rated — safe for restaurants, offices, public spaces

6 Pcs - 30 x 26 x 1 cm /11.8 x 10.2 x 0.3 in
6 Pcs - 30 x 26 x 1 cm /11.8 x 10.2 x 0.3 in
12 Pcs - 30 x 26 x 1 cm /11.8 x 10.2 x 0.3 in
12 Pcs - 30 x 26 x 1 cm /11.8 x 10.2 x 0.3 in
24 Pcs - 30 x 26 x 1 cm /11.8 x 10.2 x 0.3 in
24 Pcs - 30 x 26 x 1 cm /11.8 x 10.2 x 0.3 in
🚚 Free Worldwide Shipping $99
✅ 100 Day Returns
🌐 300k+ Customers Worldwide

local_shipping Free Shipping (Orders ≥ $99)

encrypted_add Safe Payments. Secure Privacy

money_off No Import charges, tax or extra fees upon delivery


add_shopping_cart

-

Ordered

local_shipping

-

Shipped

redeem

- - -

At Your Doorstep

Arrowzoom™ Diffuse PRO Isometric Triangle Hexagon Felt Wooden Panel - KK1417
$ 79.99
$ 79.99 $ 0.00
SAVE Sold out

The hex panel that scatters sound in every direction at once — triangulated oakwood facets break echo into many small reflections instead of bouncing it back at you in one flat wave. Decor-grade looks, NRC 0.64, M1 fire-rated.

★ 4.86 / 5 from 14 verified buyers — 93% gave it 5 stars. The strongest review ratio in the Diffuse PRO line.

Why Diffuse PRO Isometric Triangle Hexagon is different

  • Polyhedral diffusion — triangulated facets inside a hexagon scatter sound on multiple axes, not just one.
  • Absorber + diffuser in one panel — foam core kills echo, wood face scatters reflections. No paired diffuser needed.
  • NRC 0.64 — absorbs ~64% of mid/high-frequency sound energy on contact.
  • Scattering 200 Hz – 5 kHz — works across the full speech and music range.
  • M1 fire-rated (Euroclass E) — meets commercial install code for studios, offices, restaurants.
  • Hexagon tileable — full coverage with zero gaps, or stagger for a feature wall.
  • 10 wood finishes — match the room you actually work in.

How it works — polyhedral diffusion, explained

ABSORPTION

Foam core kills echo

M1 fire-class foam behind the wood face captures mid- and high-frequency energy, cutting reverb on contact.

DIFFUSION

Triangulated facets scatter sound

Each hex contains multiple triangular faces angled in different directions. Sound hits, splits, and scatters on many axes — not one.

TILES SEAMLESSLY

Hexagons cover walls cleanly

The hex geometry tiles edge-to-edge with no gaps. Build a wall, a feature panel, or a staggered pattern.

Standard foam panels only absorb. Linear-groove diffusers scatter on one axis (left-right or up-down). Triangulated hex diffusers scatter on many axes at once — which is why this design is preferred in live recording rooms, drum rooms, and vocal booths where you need broad-band scatter from a single panel.

Specifications

SKU KK1417
Panel size (hex) 11.8 × 10.2 × 0.4 in (30 × 26 × 1 cm)
Shape Hexagon — triangulated isometric facets
Pack sizes 6 / 12 / 24 pieces
Face material Laminated MDF with oakwood veneer (10 finishes)
Core material Acoustic foam — M1 fire class
Fire class M1 / Euroclass E
NRC (overall) 0.64
Scattering range 200 Hz – 5000 Hz
Color options 10 wood finishes (oak veneer + MDF tones)

Acoustic performance — what the numbers mean

Diffuse PRO Isometric Triangle Hexagon is a combination absorber + multi-axis diffuser. It reduces echo inside a room and breaks up flutter reflections on more than one axis. It does not block sound transmission through a wall.

Metric Value What it means
NRC 0.64 Absorbs ~64% of mid/high-frequency sound energy on contact
Scattering range 200 Hz – 5 kHz Breaks up flutter echo across the full speech and music range
Scatter axes Multi-axis Triangulated facets scatter sound in many directions, not one
Fire class M1 / Euroclass E Meets commercial-install fire requirements in most EU and Asian markets
STC Not rated STC measures wall blocking. For noise transmission between rooms, use mass — not absorption.

NRC 0.64 is the published overall figure for the foam-and-veneer assembly. Lab-measured.

What's in the box

  • 6, 12, or 24 Diffuse PRO Isometric Triangle Hexagon panels (selected pack size)
  • 11.8 × 10.2 × 0.4 in / 30 × 26 × 1 cm each
  • Selected oakwood / MDF finish
  • Install guide (mounting hardware sold separately)

Install in 4 steps

1

Plan the layout

Lay panels on the floor first. Hexagons tile edge-to-edge for full coverage, or stagger them for a feature wall. Photograph before mounting.

2

Choose your mount

Construction adhesive for permanent installs. Heavy-duty Command strips or Z-clips for rental-friendly mounting.

3

Mount the panels

Press firmly for 30 seconds. Start at the top of the layout and work down. Match facet orientation if you want a regular pattern; rotate randomly for maximum scatter.

4

Treat first-reflection points

For studios and listening rooms, prioritize panels at the first-reflection points on side walls and behind the listening position.

Made for

Live recording & drum roomsMulti-axis scatter keeps the room lively without flutter — drums don't ring, vocals don't go dead.
Vocal booths & podcast roomsKills flutter between parallel walls; broadband scatter makes the mic capture sound natural.
Listening rooms & home theatersCleaner stereo image, no slap-back, no "dead-room" sterility from over-absorption.
Modern offices & design-led restaurantsM1 fire class meets commercial code. Hex pattern reads as architecture, not acoustic patch.

Why polyhedral diffusion beats flat panels

Isometric Triangle Hex (KK1417) Flat foam panel Linear-groove diffuser
Absorbs echo (NRC) 0.64 0.25–0.40 typical Near zero
Scatter axes Multi-axis (triangulated) None One axis only
Scattering range 200 Hz – 5 kHz None Limited band
Tileable for full coverage Yes — hex geometry Yes — square Often not
Decor-grade finish Oakwood, 10 finishes Foam only Wood, limited
Commercial fire rating M1 / Euroclass E Varies / often not rated Varies

100-Day Acoustic Guarantee

Mount the panels. Live with them for up to 100 days. If your room isn't measurably better — or if the look isn't what you wanted — send them back for a full refund. We've shipped acoustic products worldwide for over a decade. We stand behind every order.

Frequently asked questions

Will this block noise from my neighbor or the street?
No. This panel is an absorber + diffuser. It reduces echo and scatters reflections inside a room. Blocking noise through a wall requires mass — extra drywall, mass-loaded vinyl, or a sealed door. Anyone selling a 1 cm foam-and-veneer panel as "soundproofing" is misleading you.
What does "polyhedral" or "multi-axis" diffusion actually mean?
A flat wall reflects sound back in one direction. A linear groove scatters it on one axis (left-right or up-down). The triangulated facets on this hex face are angled in many directions, so incoming sound splits and scatters on multiple axes at once. That's why it works better in live rooms and drum rooms where flutter can come from any wall.
How many panels do I need?
For most home studios and offices, cover 20–30% of reflective wall area. Rough guide: small booth or office → 6–12 panels. Mid-size studio or vocal room → 12–24 panels. Drum room, auditorium, or large feature wall → 24+ panels (multiple packs). Hexagons tile edge-to-edge, so you can build any shape.
Is the wood face real oak?
The face is laminated MDF with oakwood veneer — same construction used in commercial acoustic panels and high-end furniture. Solid oak at this geometric thickness would crack and cost 5× more. Veneer gives the same look at a usable weight and price.
Can I install this myself? What about rentals?
Yes. For permanent installs, construction adhesive or screws into wall anchors. For rentals, heavy-duty 3M Command strips, or Z-clip brackets that lift on and off. Mounting hardware is sold separately so you can match the wall.
Is this safe for commercial spaces — restaurants, offices, schools?
Yes. The panel is M1 fire-rated (Euroclass E), which meets commercial fire-safety code in most EU and Asian markets. Always confirm specific local requirements with your fire marshal or architect before installing in public assembly spaces.
Can I tile the hexagons or do I have to stagger them?
Both work. Hexagons tile edge-to-edge with zero gaps for full-coverage walls. Staggered or partial layouts make a feature wall. For maximum scatter, rotate every other panel so the facets point different directions.
Will it work on brick, concrete, or textured walls?
Yes — with the right hardware. Use masonry anchors and screws for brick and concrete. For heavily textured drywall, construction adhesive bonds better than tape-based mounting. The panels themselves are rigid and flat-backed, so the wall surface determines the mount.
How long does shipping take?
Handling 1–2 business days, then standard shipping 7–14 days to the US and most countries (free worldwide on orders $99+). Express shipping is available at checkout — 7 days or less to most destinations.
What's your return policy?
100-day guarantee. If the panels don't deliver the acoustic or visual result you expected, contact support within 100 days for a full refund. Bulk B2B / contractor orders (100+ panels) follow a separate policy — contact us before placing the order.
How do I clean the wood face?
Dry microfiber cloth for dust. Slightly damp cloth (water only, well-wrung) for the rare smudge. No solvents, no furniture polish, no spraying — the veneer and the foam core both prefer dry treatment.
